Revisions and versions

Versions are the automatic audit trail; revisions are the codes you declare and issue. How the two work together, and what issuing a revision freezes.

Every document in Cogram carries two kinds of history. They answer different questions, and keeping them separate is what makes the register trustworthy.

What is a version?

A version is a system-generated number that increases each time a file arrives: an upload, or a restore of an older file. You never set it, and it never repeats. For example:

1. You upload Commissioning Plan.pdf. It begins as version 1.

2. A colleague uploads a corrected file. The document is now version 2.

3. You restore version 1 to make it current again. Its file comes back as version 3.

Versions are the audit trail: every file the project has ever held stays in the history, viewable and downloadable, with who added it and when. Nothing is ever overwritten.

Versions count files, not edits to details. Renaming a revision code or a status change does not create a version. Only a file arriving does.

What is a revision?

A revision is a code you declare against a document: P01, C01, Rev B, whatever your project's convention is. For a drawing, it should match the revision in the title block, and Cogram reads it from there automatically on drawing uploads. Cogram does not force a format: the code is your project's language.

A revision can span several versions. If P01 had a corrected file uploaded over it before it was ever sent anywhere, both files sit under P01 in the history. The revision is the name, and the versions are the audit beneath it.

Documents without a revision code show a dash in the Rev column. That is a perfectly good way to work: if your team does not run formal revisions, versions alone give you the full history, and the Rev column simply stays out of the way.

Setting and changing a revision

• On upload, type a code in the upload dialog to apply it to that upload, for example P02 across an issue package.

• On the document page, use Set Revision… on the current version, or the edit control next to an existing code.

• When uploading to one document, choose whether the file is an update to the current revision (a corrected file under the same code) or a new revision with a new code.

Issuing freezes a revision

When a transmittal is sent carrying a document, the exact revision and version that went out become part of the record of what the recipient holds. From that moment the code is frozen, permanently:

• The issued version cannot be renamed to a different code.

• No new file can be uploaded under that code, and the code cannot be reused later. A changed file needs a new revision.

• The register shows a lock next to issued revisions; the tooltip names the transmittals that froze them.

This is the core doc-control guarantee: C01 always means the file that was issued as C01.

Restoring an old version

Restore brings a past version's file back as a new current version. The history is never rewritten. When you restore, Cogram asks the same question an upload does: is the returning file an update to the current revision, or the start of a new one? If the current revision was already issued, it stays frozen and the restored file starts a new revision. Set a code on it before the next issue.

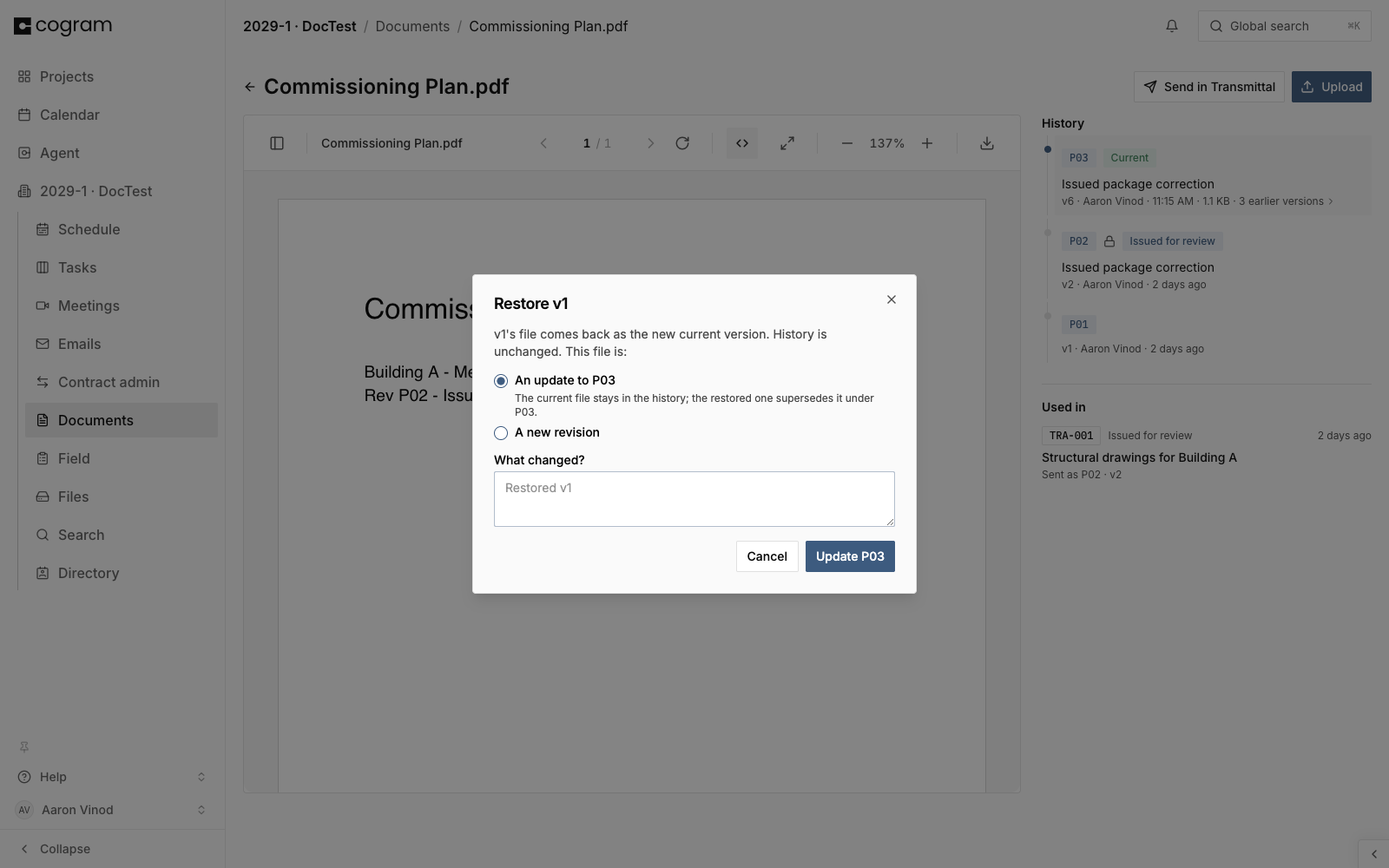

Restoring a version: choose whether it updates the current revision or starts a new one.

Statuses

Sending a transmittal stamps a status on the exact version it carried, for example Issued for review or Issued for construction, matching the transmittal's purpose. The status names the last issuance; the full issuance history, with every purpose and date, is on the document page under Used in.

Next steps

• Documents: the register, folders, and uploads

• Transmittals: issuing documents formally
